Firewall and private networks

Falak manages a firewall on every server with nftables, and can join servers into WireGuard private networks so they talk over encrypted private addresses.

The policy is drop everything inbound, then allow what the rules say:

  • Established connections and ICMP are accepted.
  • Rules for private networks come first, then your deny rules, then your allow rules, each in order.
  • The SSH port is always accepted by the agent, so you cannot lock yourself out.

Seeded when a server finishes provisioning:

Rule Protocol Port Servers
SSH TCP 22 all
HTTP TCP 80 app, web, lb
HTTPS TCP 443 app, web, lb

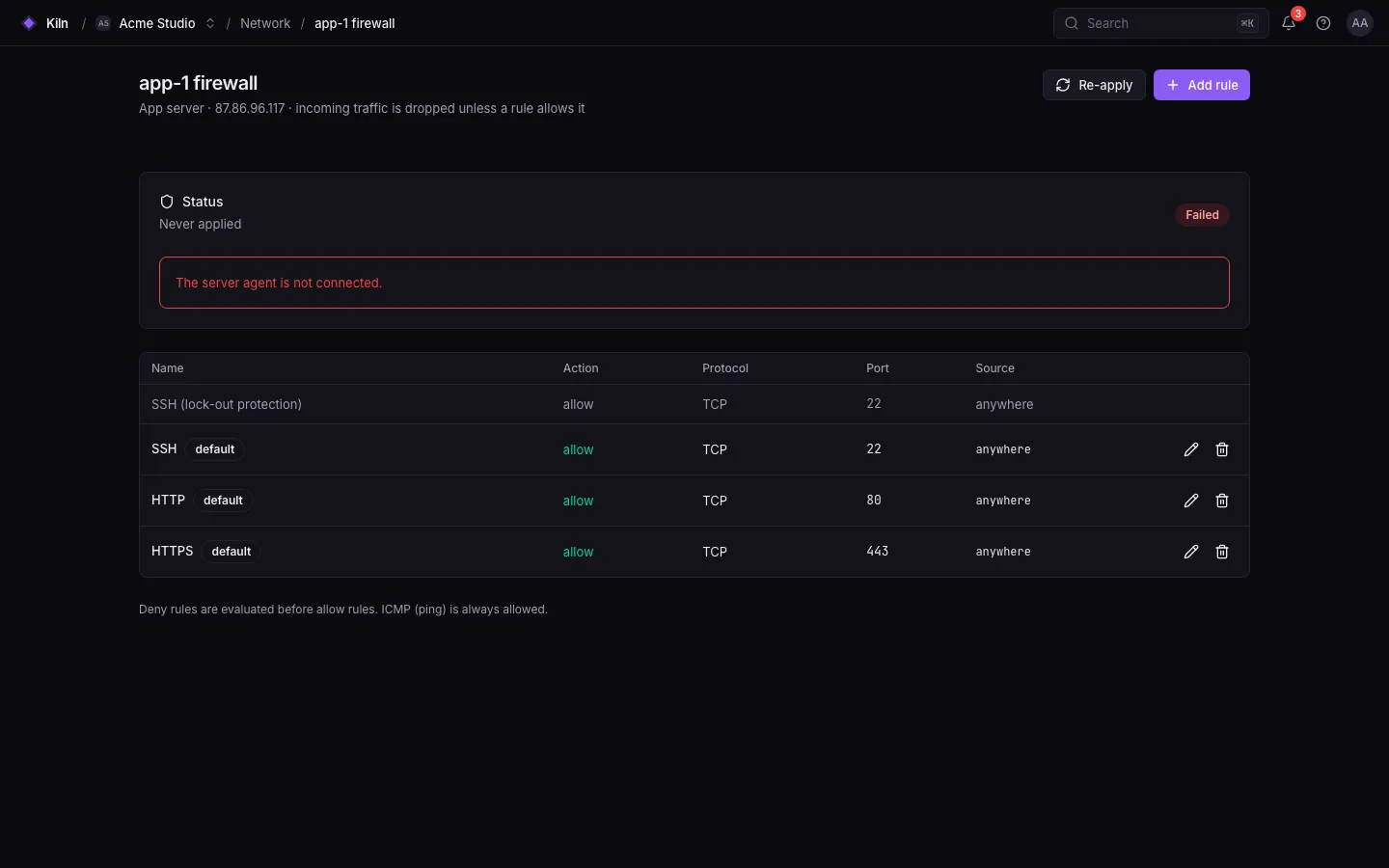

The firewall tab of a server: the default SSH, HTTP and HTTPS allow rules and a form to add rules.

  1. Open the server page → Firewall.

  2. Click Add rule and fill in:

    Field Allowed values
    Name Up to 120 characters
    Action allow or deny
    Protocol tcp, udp or any
    Port A port (1–65535) or a range like 8000-8100; empty = all ports
    Source An IPv4/IPv6 address or CIDR like 203.0.113.0/24; empty = anywhere
  3. Save. The full rule set is sent to the agent (net.firewall.apply) and applied atomically.

Since v0.17.2 the Firewall tab shows packets and bytes next to each rule. To block an address or range, or to rate-limit a path, see Network protection; blocks live in their own nftables table and never change these rules.

Managing rules needs network.manage. Failures raise the Firewall apply failed alert (network.firewall_failed); Firewall applied again (network.firewall_recovered) follows the first success after that.

A private network connects servers over WireGuard. Falak generates the keys, assigns addresses and keeps every member’s configuration in sync.

  1. Open Network → Private networks and click New network.
  2. Enter a name. Optionally change the address range (default 10.90.0.0/24, FALAK_PRIVATE_NETWORK_CIDR) and the listen port (default 51820, FALAK_WIREGUARD_PORT; 1024–65535).
  3. Add servers. Each gets an address in the range; persistent keepalive is 25 seconds.

Falak installs wireguard-tools on a member on demand, the first time it joins a private network (since v0.7.1; fresh servers without it never brought their private networks up before). Servers outside private networks don’t get it.

What uses the private network:

  • Database references from sites on other servers of the environment (see Database container ports).
  • Load balancers proxy to backends over the private network.

Falak adds the rules a private network needs to each member’s firewall automatically, before your own deny rules, so a deny rule never cuts the mesh. If your cloud provider filters traffic, open the WireGuard UDP port between members there.

Some providers put servers of one account and region on a private network of their own. Where Falak can be sure two servers share one, it uses it as a fallback when they share no Falak private network:

  • DigitalOcean and Lightsail only: both servers created by Falak with the same provider credential, in the same region.
  • Not Hetzner, Vultr or Linode — their private networks are opt-in, and Falak doesn’t track membership — and never custom servers. Put those in a Falak private network.

Database references use this order: a Falak private network first, then the provider private network, and never the public address.

Database containers publish their port only as far as their consumers need:

  • Containers of the environment on the same server reach the database by name on the environment’s Docker network; nothing is published for them.
  • Native sites on the same server use 127.0.0.1 and the host port (20000–29999).
  • Other servers of the environment: the port is published on the server’s private address once you apply it, and accepted from exactly those servers’ addresses. The agent filters it in Docker’s DOCKER-USER chain, so Docker’s port publishing never goes around the firewall.
  • Public access (off by default): published on every address, TLS required, and accepted only from the allowed sources you list.

You don’t add these rules yourself; Falak converges them when sites, servers or private networks change.

  • WireGuard private networks are covered by unit and feature tests, not yet by the end-to-end suite.
  • The firewall manages inbound rules only.
